- ABS TIN-PLATED COPPER MATERIAL: Our boat selector switch is made of high-quality ABS Made of tin-plated copper material, high strength, strong and wear-resistant, not easy to deform, resistant to chemical reactions, and can be used for a long time under harsh marine conditions
- PROFESSIONAL DESIGN: Our 4 position battery switch is professionally manufactured, exquisitely crafted, heavy-duty, 4-position (OFF-1-2-1 2), not easy to loosen; the make first, break later touch design ensures that switching between battery packs will not interrupt power
- EXCELLENT PERFORMANCE: Our marine DC selector switch has good conductivity, IP66 waterproof, ignition-proof, stable performance, and high reliability; it can withstand strong water spray; it can ensure the safety of installation on boats with gasoline engines
- EASY TO INSTALL: Our battery selector switch is easy to install, and the mounting hole accepts 1/4 inch (M6) screws and 1/2 inch (M12) terminals. It is easy to use and labor-saving, making it a practical choice for boat owners who like easy settings
- WIDELY APPLICATIONS: Our disconnect switch has a continuous current rating of 500 amps and is compatible with a variety of ships, RVs and other vehicles that require dependable power management solutions; it also extends to a variety of applications, from powering navigation equipment to running basic equipment on board
Specification:

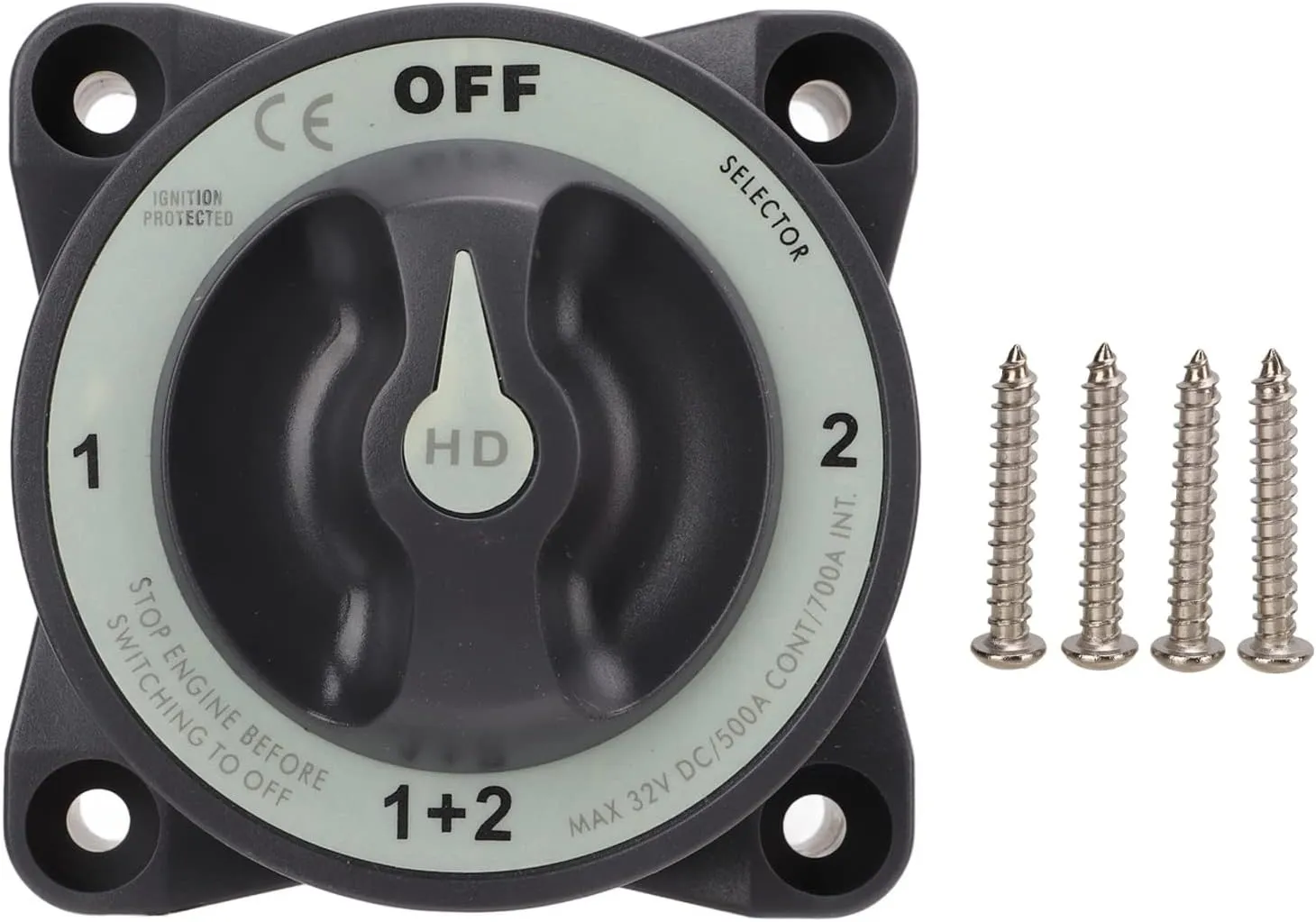

Item Type: Battery Disconnect Switch
Material: ABS, Tinned copper
Switch Positions: 4(OFF-1-2-1 2)
Battery Combine: Yes
Alternator Field Disconnect: No
Maximum Voltage: 32V DC
Terminal Stud Torsion: 220 in-lb (24.86 Nm)
Continuous Rating: 500A
Intermittent Rating: 700A (5 min)
Cranking Rating 10 sec: 2750A
Cranking Rating 1 min: 1150A
Battery Inputs: 2
Cable Clearance For 4/0 AWG Cables: Approx. 27.94 mm/1.10in
Cable Quantity to Meet Ratings: Two Cables or Terminal
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept 1/4in (M6) Screw
Stud Material: Tinned Copper
Terminal Stud Size: 1/2in (M12)Function: Switches isolated battery banks to all loads or combines battery banks to all loads, make before break touch design allows switching between battery banks without power interruption.
Application: Ideal for Marine or RV
Package List：
1 x Battery Disconnect Switch
4 x Setscrew
