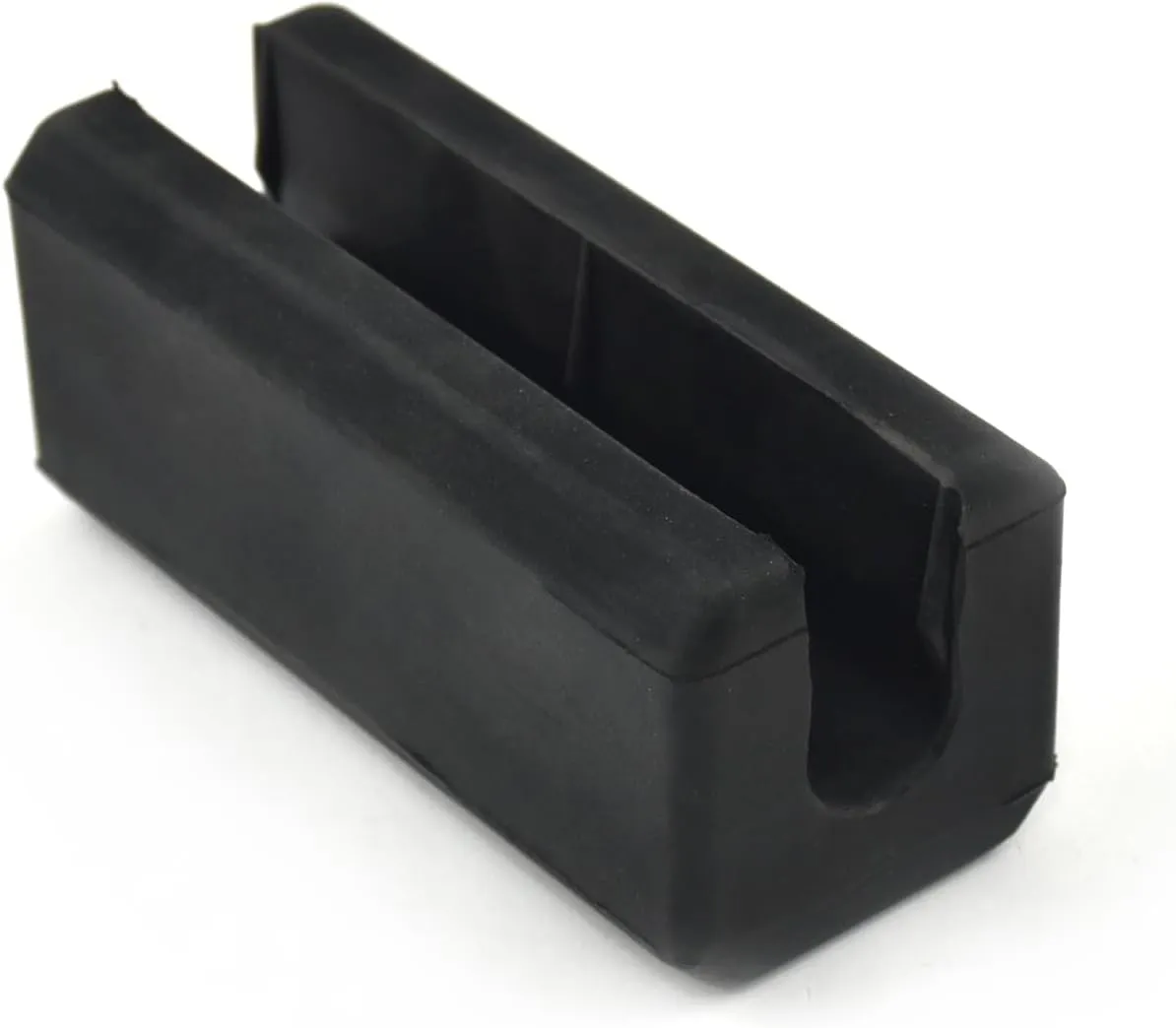

- Fitment: outboard engine tilt trailering support for motors with single ram, suitable for two and four stroke models 8-115HP. Also fits F115B, F130 and VF115, compatible with Yamaha Mercury Evinrude Johnson Suzuki Honda marine engines
- Replace Model Number: MAR-MTSPT-SR-00
- Feature: The trailering tilt motor support has been designed to allow highway transport of your boat with the motor in a tilted position. The trailering support prevents the motor from returning to the vertical position and possible contact with the road surface. The motor support also prevents excessive loads created by road surface conditions and helps to prevent damage to the tilt assembly.
- Simple Installation: Tilt ousboard motor high enough to provide adequateinstallation cloaranco between the trim cyfinder rods andthe motor's swivel bracket. Wash using a mild soap and water solution and softcloth.
- Service: You will get a 90-day shelf life for our store. If you have any questions about outboard engine tilt trailering support during the installation process, please contact us in time. We will reply you within 24 hours.
Fits:
Fits for Mercury (15 hp–200 hp 4-stroke)
Fits for Mercury Verado (all 6 and 8 cylinders). Two Universal Units Required.
Fits for Mercury Four-Stroke, SeaPro (all with Single Main Tilt Shaft) Fits for Yamaha (9.9-F115LB )
Fits for Honda with single-ram trim/tilt
Fits for Suzuki with single-ram trim/tilt
Fits for Evinrude with single-ram trim/tilt
Fits for Johnson with single-ram trim/tilt Kicker motors with power tilt systems.
Feature:
Specially tailored for selected models, perfect fit.
Easy to install with mounting accessories, no special tools required. Effection And Purpose:
Simply solves outboard motor trailering problems, Quickly and easily installs around trim and tilt ram.Helps protect your outboard and minimizes strain on the boats transom
INSTALLATION:
AWARNIG:
Make sure that no one is near the outboard motor whentilting the outboard motor up or down. Otherwise, bodyparts could bo crushod between the outboard motor andthe clamp.
1. Tilt ousboard motor high enough to provide adequateinstallation cloaranco between the trim cyfinder rods andthe motor's swivel bracket
TP: If the design of the boat or other accessories prohibits uitingthe motor high encugh to install the Trallering Suppoct, theoverall length of the support can be reduced lo alowinstallation, Cut the Trailer Support, using a suitable saw, 1othe desirod length.
2. Slide the Trailering Support over the extended trimhitrod.
3. To secure the motor, tilt the motor down until the TraileringSupport rubber begins to compress.
REMOVAL:
1. Tit the engine high enough to allow adequate ciearancefor removal.
2. Side the Trailering Support off and store in acomveniont location.
MAINTENANCE: Check the Trallering Support periodically to be sureit is in good condition.
CARE AND CLEANING:
Wash using a mild soap and water solution and softcloth.
