This PV Logic FLEXi Roof and Decktop Kit contains everything you need to install the lightweight and semi flexible solar panel onto the deck of your boat or roof of your campervan, caravan or motorhome or boat roof/deck. Includes: Panel, Controler, Bonding agent, Waterproof gland. From the 10wp to the 180wp, PV Logic Flexi is well suited for use where a super robust, low profile and lightweight panel is needed, or the substrate to which the panel will be fixed has a slight curve. Ideal for marine buoys, boat decks, camper vans etc. Features Power Wp 20watts
Nominal Voltage Vmp 18V DC
Nominal Current Imp 1.11A
Open Circuit Voltage Voc 21.6V
Short Circuit Current Isc 1.21A
Operating Temperature ~40 to 80 Deg C
Max System Voltage 750V DC
Dimensions 505x345x3mm Junction box 10mm

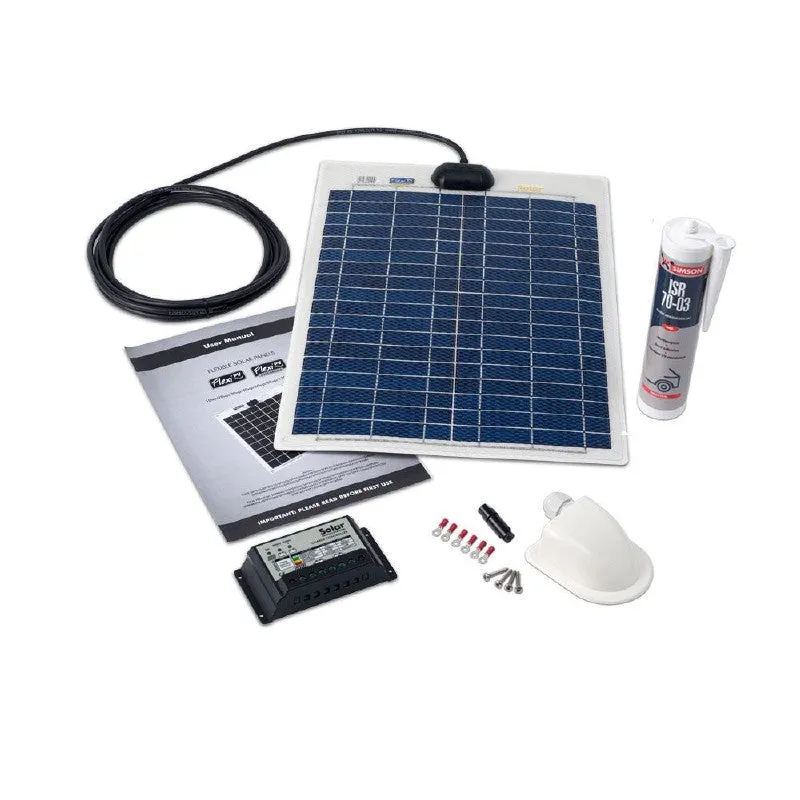

Weight 0.70kg In the Box 1 x STPVF020 ~ 20wp solar panel, 1 x 4m Cable attached, 1 x 10A Charge Control, 1 x Fuse, 6 x Ring Terminals, 1 x Simson 70 ~03 Adhesive, 1 x Waterproof Cable feed gland, 4 x Stainless steel fixing screws, 1 x Instruction Sheet
